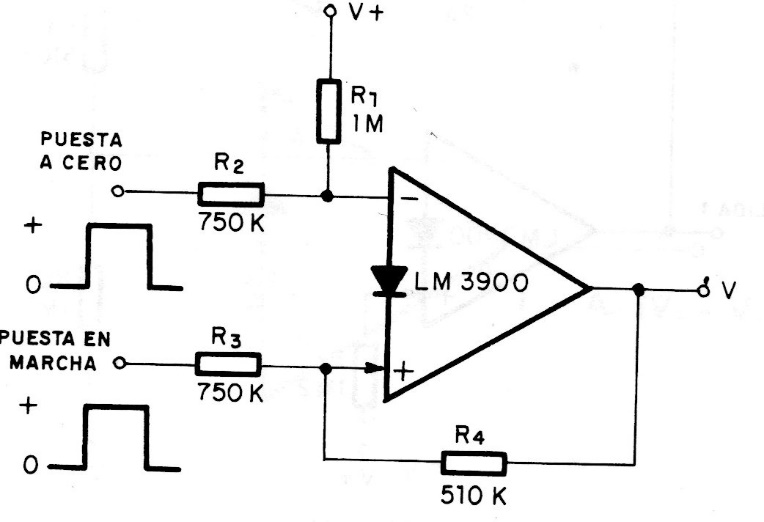

The figure shows how to implement an R-S flip-flop or bistable reset-Set with an LM3900 transconductance operational amplifier. The circuit is from an old operational amplifier manual and the supply voltage must be according to the implemented logic.
