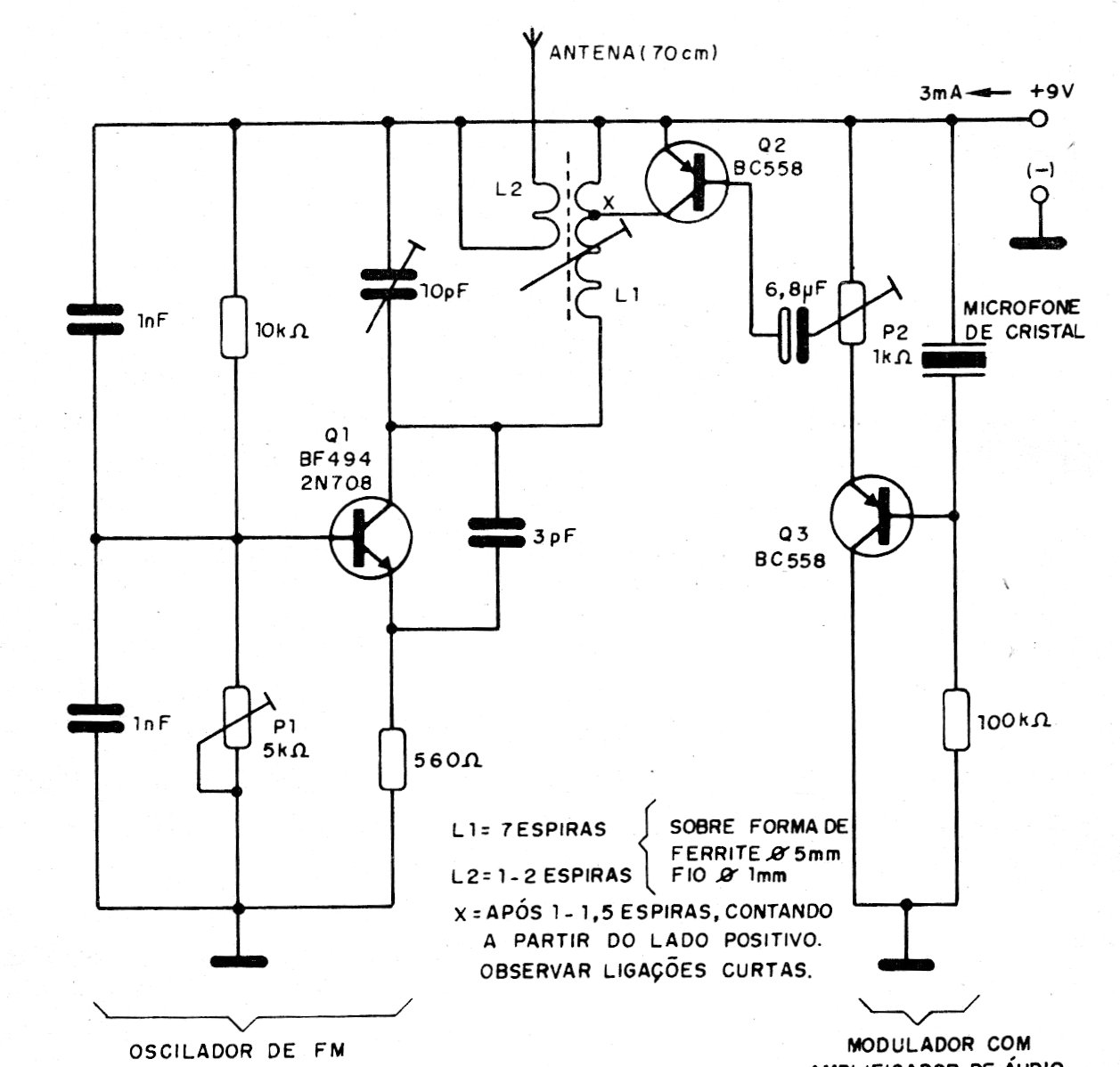

This small crystal microphone transmitter was indicated in an 80s spy book. The range depends on several factors, for example, the sensitivity of the receiver. Next to the circuit, the characteristics of the coils are given.
