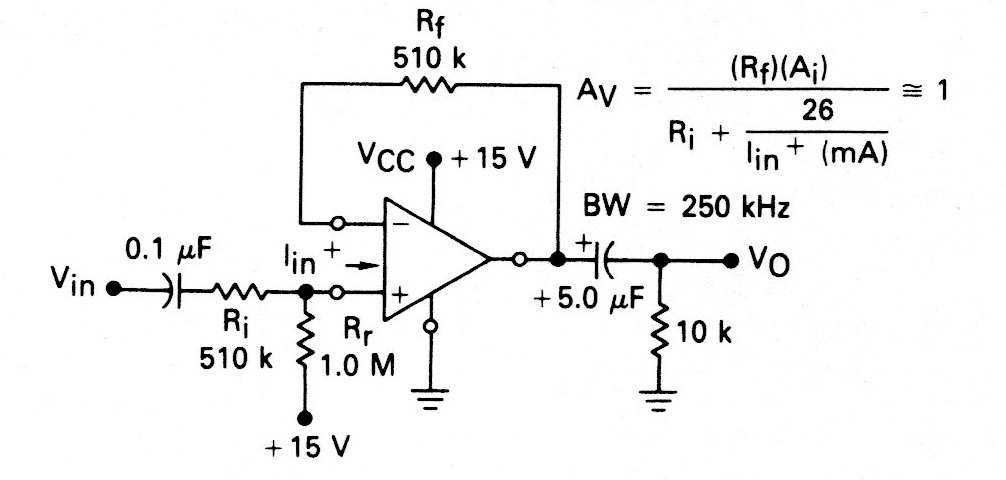

This circuit is from the component's own manual, but it applies to others in the same family. The circuit is powered by 15 V but will work with lower voltage equivalents in appropriate applications.
| Clique na imagem para ampliar |
LM3900 Non-Inverter Amplifier (CB19843E)
