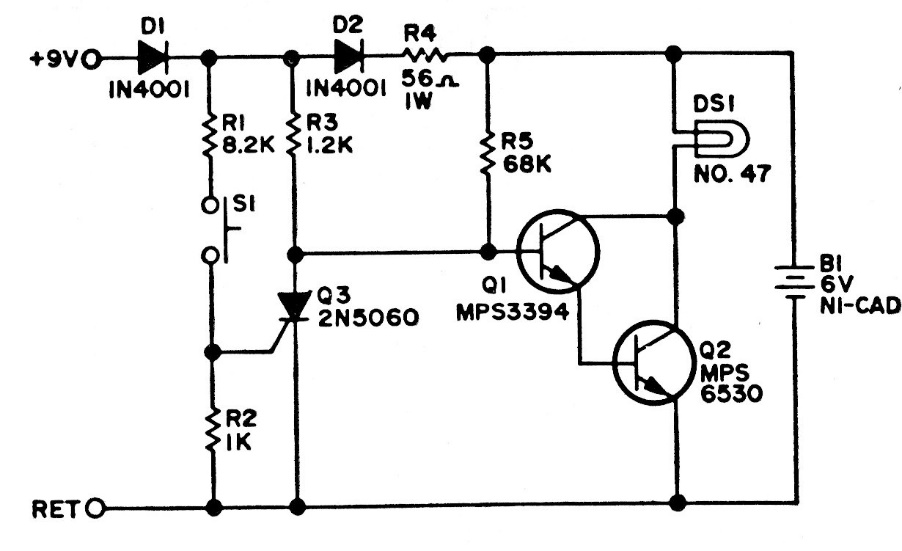

This circuit turns on an indicator lamp (or an LED with a resistor) when the power is cut and keeps the indicator on, even after the power returns. The circuit is from an old documentation and the transistors, like the SCR, admit equivalents.
| Clique na imagem para ampliar |
