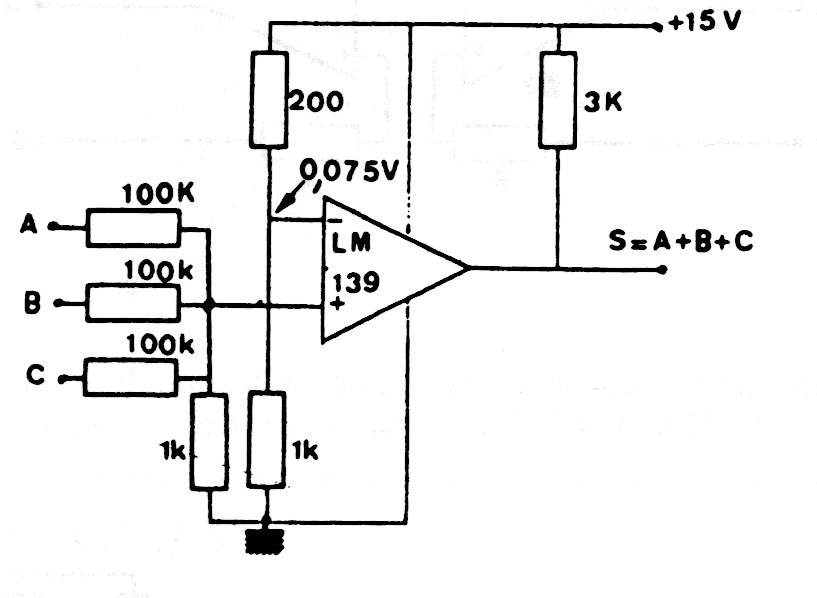

This is the traditional configuration of an OR gate using a voltage comparator, but it can also be implemented with an operational amplifier. The circuit must be supplied with voltage according to the logic used and with 5 V it can work as a shield.
