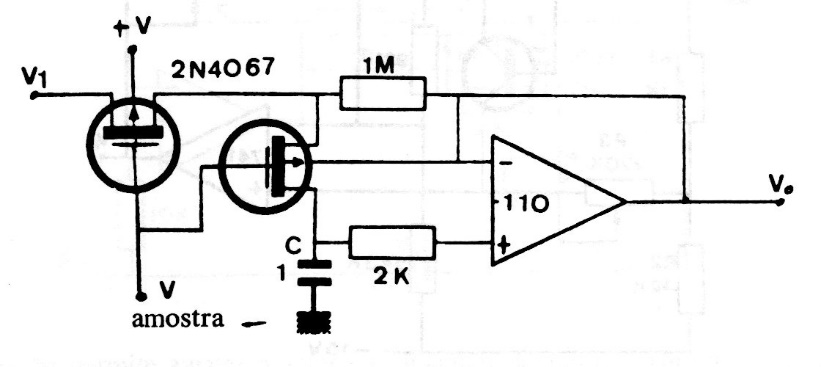

This Sample & Hold circuit uses infrequent field effect transistors today and an operational one that must be powered by a symmetrical source. The circuit is from an operating manual and capacitor C must be a high-quality type with low leakage.
