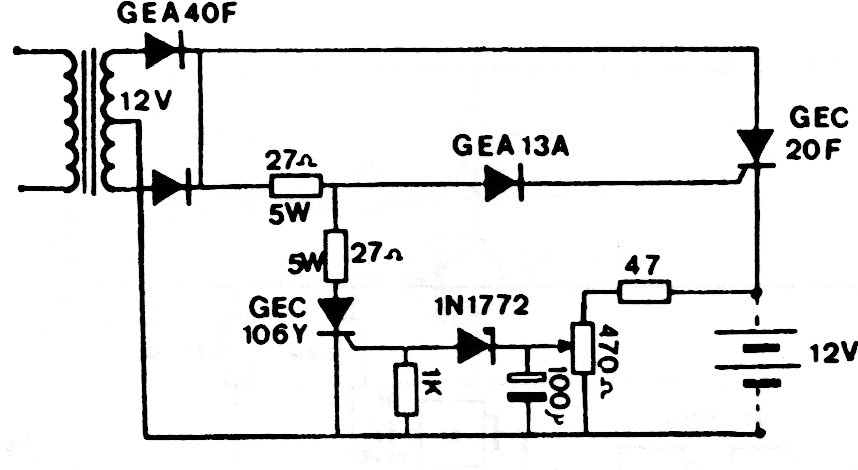

This charger was found in a General Electric circuit manual from the 1960s. The circuit is still current and can be implemented with current SCRs and other equivalent components. The transformer is 12 V x 5 A. The potentiometer must be adjusted to disconnect the charger when the charge is complete.
| Clique na imagem para ampliar |
