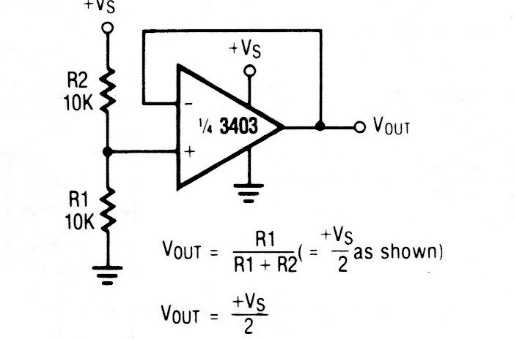

In the figure we have the simple way to implement a voltage reference with an operational one. The operational amplifier used is not common, but the circuit can be designed with modern equivalents.
Voltage Reference (CB19731E)
- Details
- Written by: Newton C. Braga
