Series Regulator SFC2309R (CB19500E)

Details
Written by: Newton C. Braga

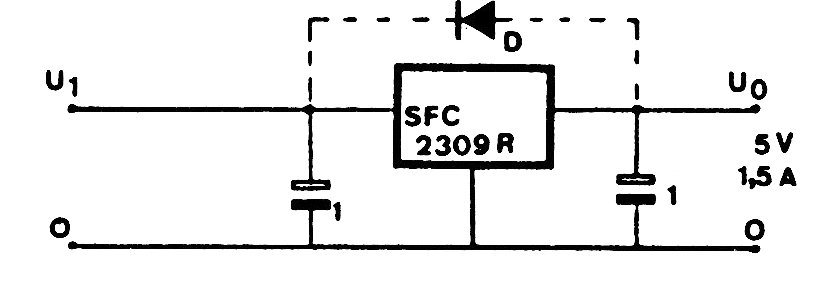

The integrated circuit used in this regulator is not common today. The circuit is from a technical documentation from the 80's and is only used as a reference for eventual repair.




| Clique na imagem para ampliar |
