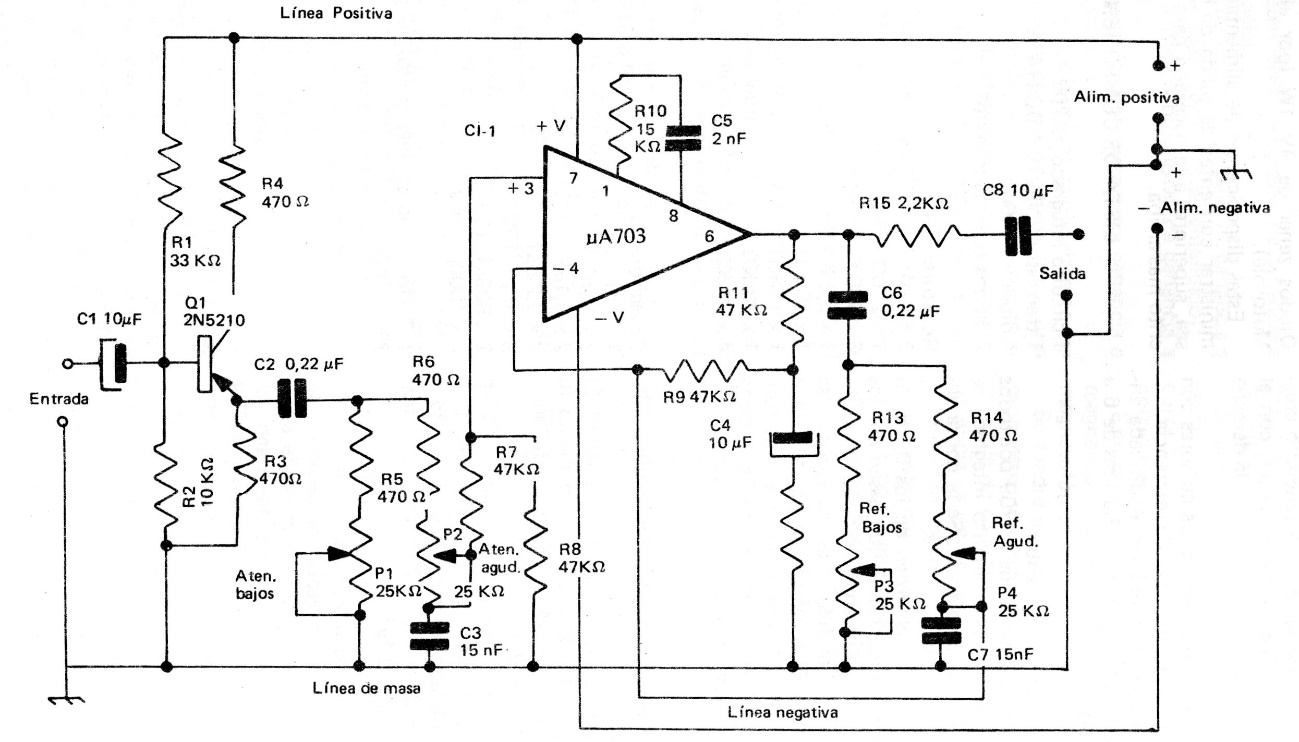

The uA703 integrated circuit is not common today, as the circuit is from European documentation from the 70s. However, we can take advantage of the basic idea and make changes to use a more modern operational amplifier. The power supply must be symmetrical with voltage according to the operational. Source in CB19622E.
