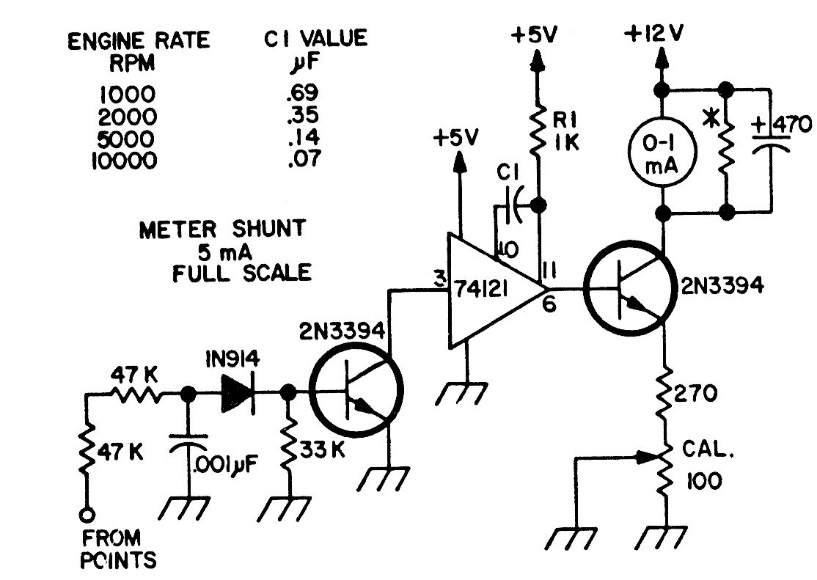

This 1975 tachometer for cars with platinum can serve as an idea for new projects. The components are from the era and a modern equivalent operational amplifier can be used.
| Clique na imagem para ampliar |
Tachometer (CB20062E)
- Details
- Written by: Newton C. Braga
