Sampling and Holding with Adjustment (CB20159E)

Details
Written by: Newton C. Braga

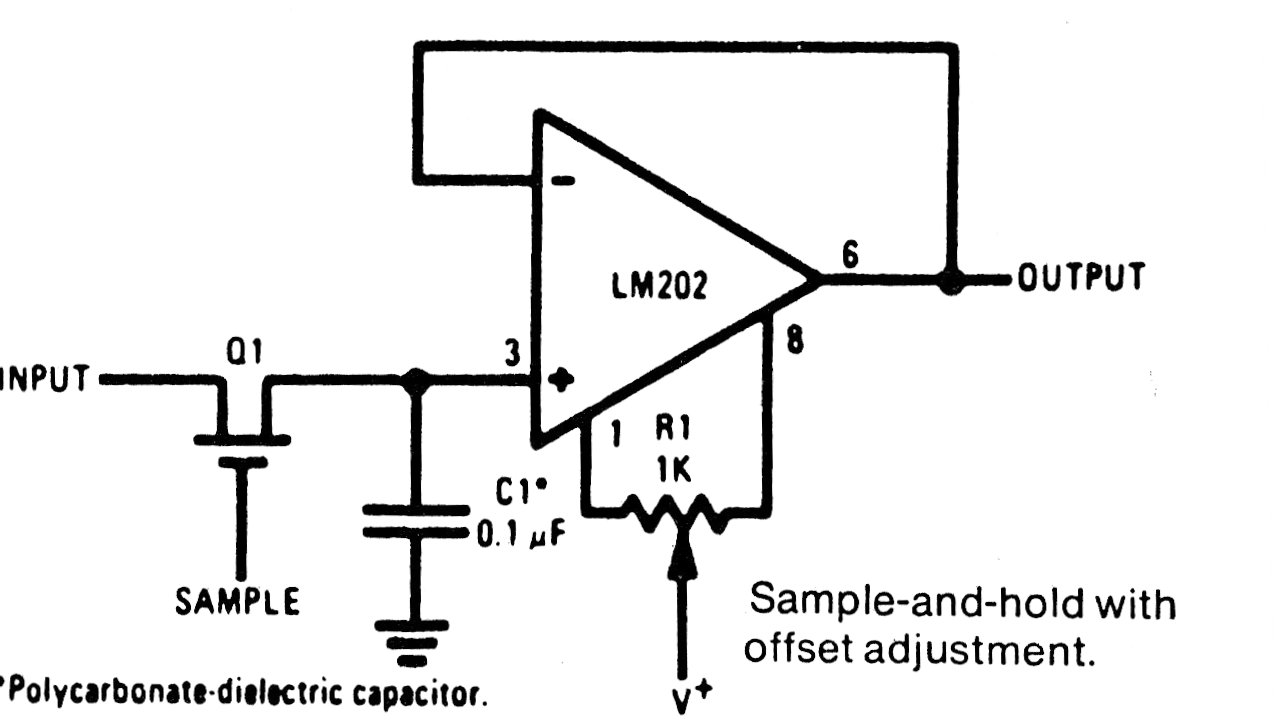

This circuit is from the factory manual of the LM202, an uncommon operation today. It shows how to obtain an offset adjustment for this type of circuit. The power supply must be symmetrical.
