Low Current Source (CB20199E)

Details: Written by: Newton C. Braga

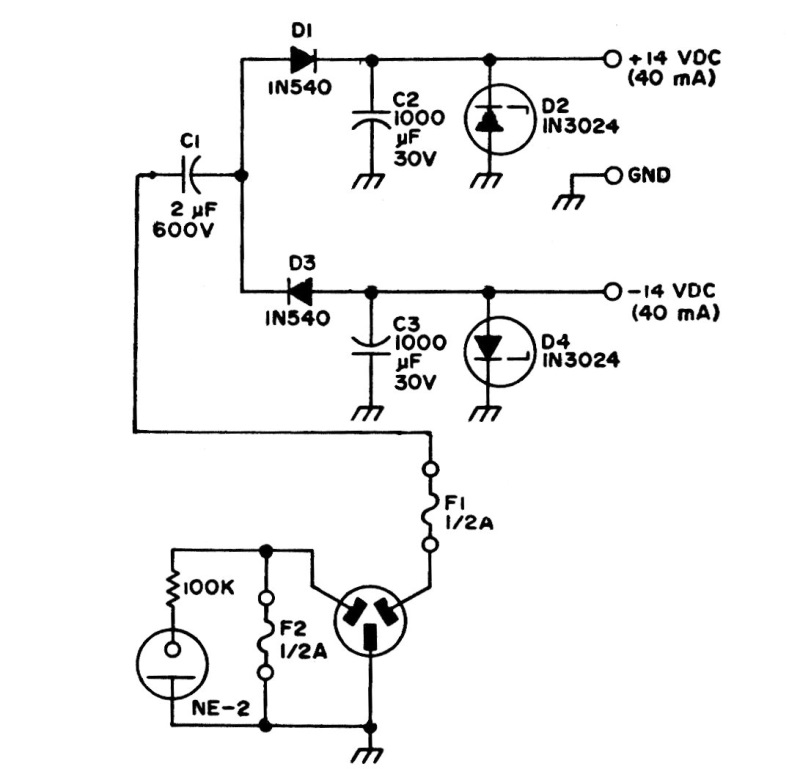

This low current source without a transformer is intended for applications where insulation is not important. The circuit has a 110 V (120 V) input and was found in old American documentation.
