Electronic Vibrator (CB20061E)

Details: Written by: Newton C. Braga

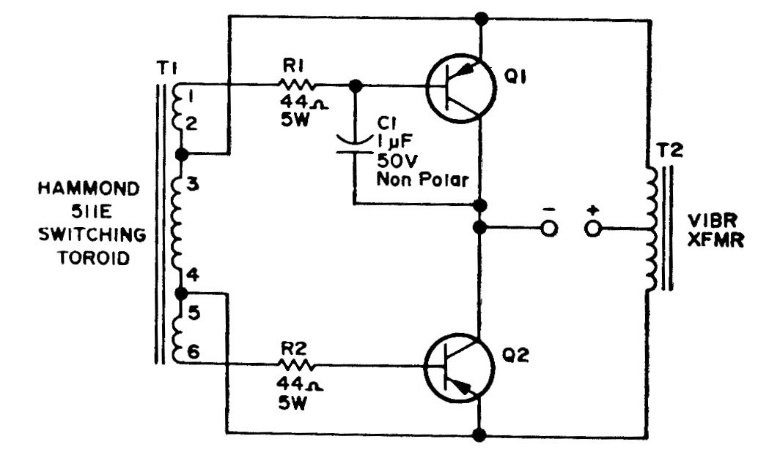

This 1975 circuit for automotive applications replaces the mechanical vibrator found in old cars to produce high voltage in the supply of tube equipment.
