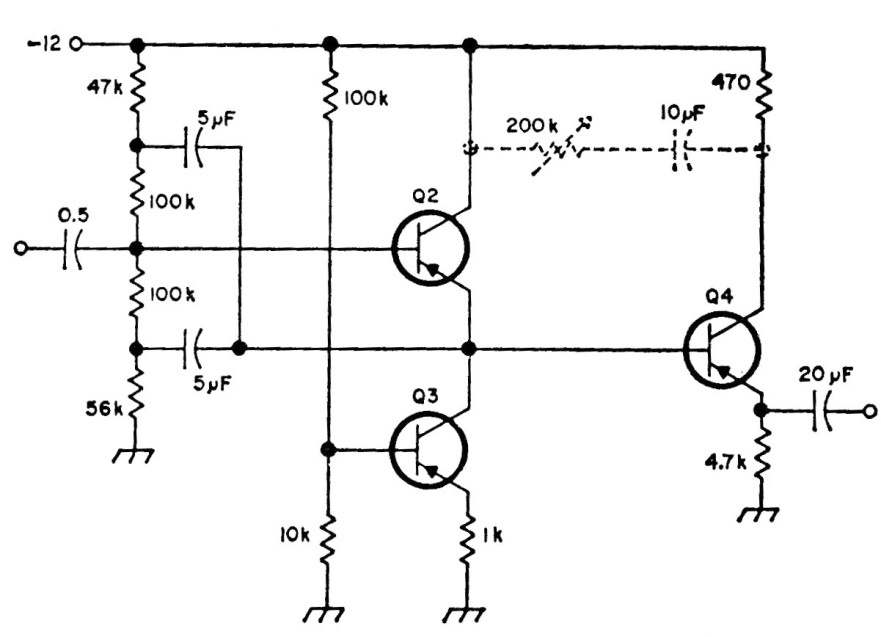

It is an improved version of the previous circuit with a voltage follower that reduces the load impedance. The circuit was found in American documentation from the 1980s.
| Clique na imagem para ampliar |
10 Hz to 220 kHz amplifier (CB20229E)
