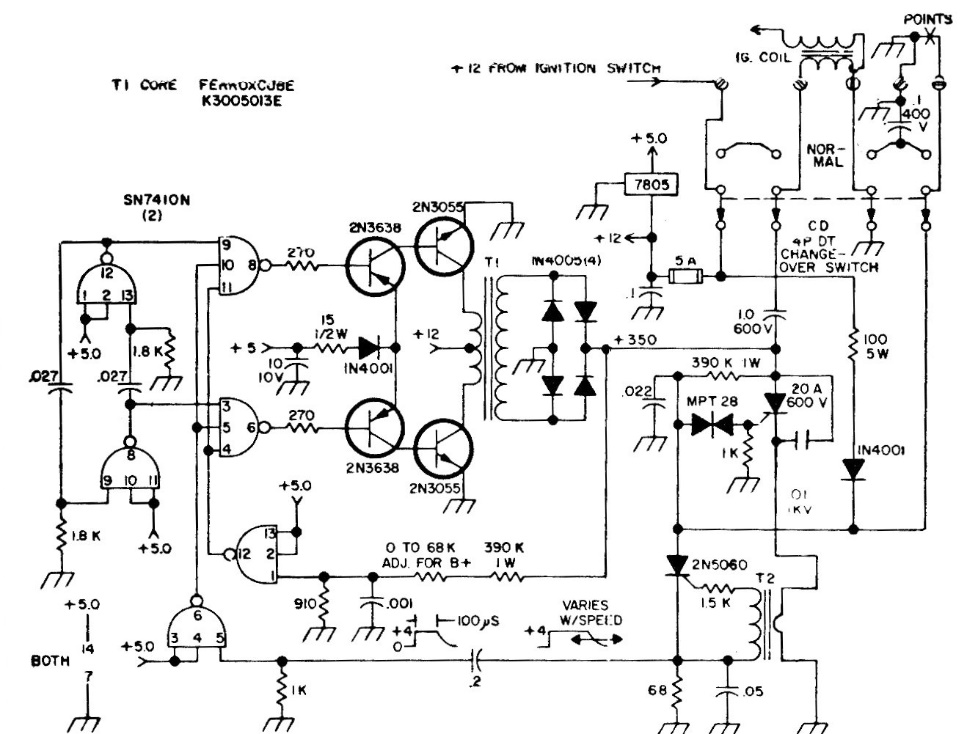

Capacitive discharge ignition (CB20058E)

Details
Written by: Newton C. Braga



This circuit was found in an American documentation from 1975. The components of the time can no longer be found easily, but they can be tested equivalent.
