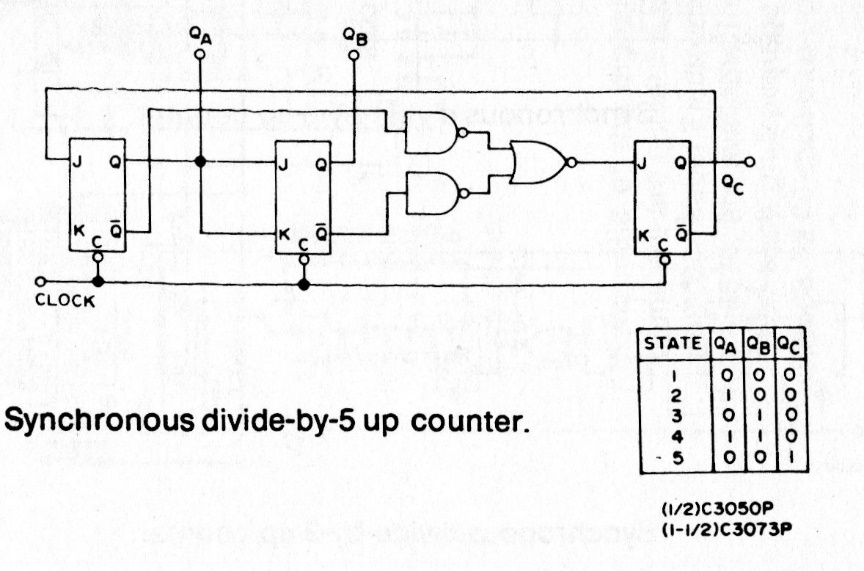

Divider by 5 (CB20101E)

This dividing circuit can be implemented with either TTL or CMOS logic, using the appropriate logic functions. Power depends on the application.
