500 mW Amplifier Powered by the Grid (CB20039E)

Details: Written by: Newton C. Braga

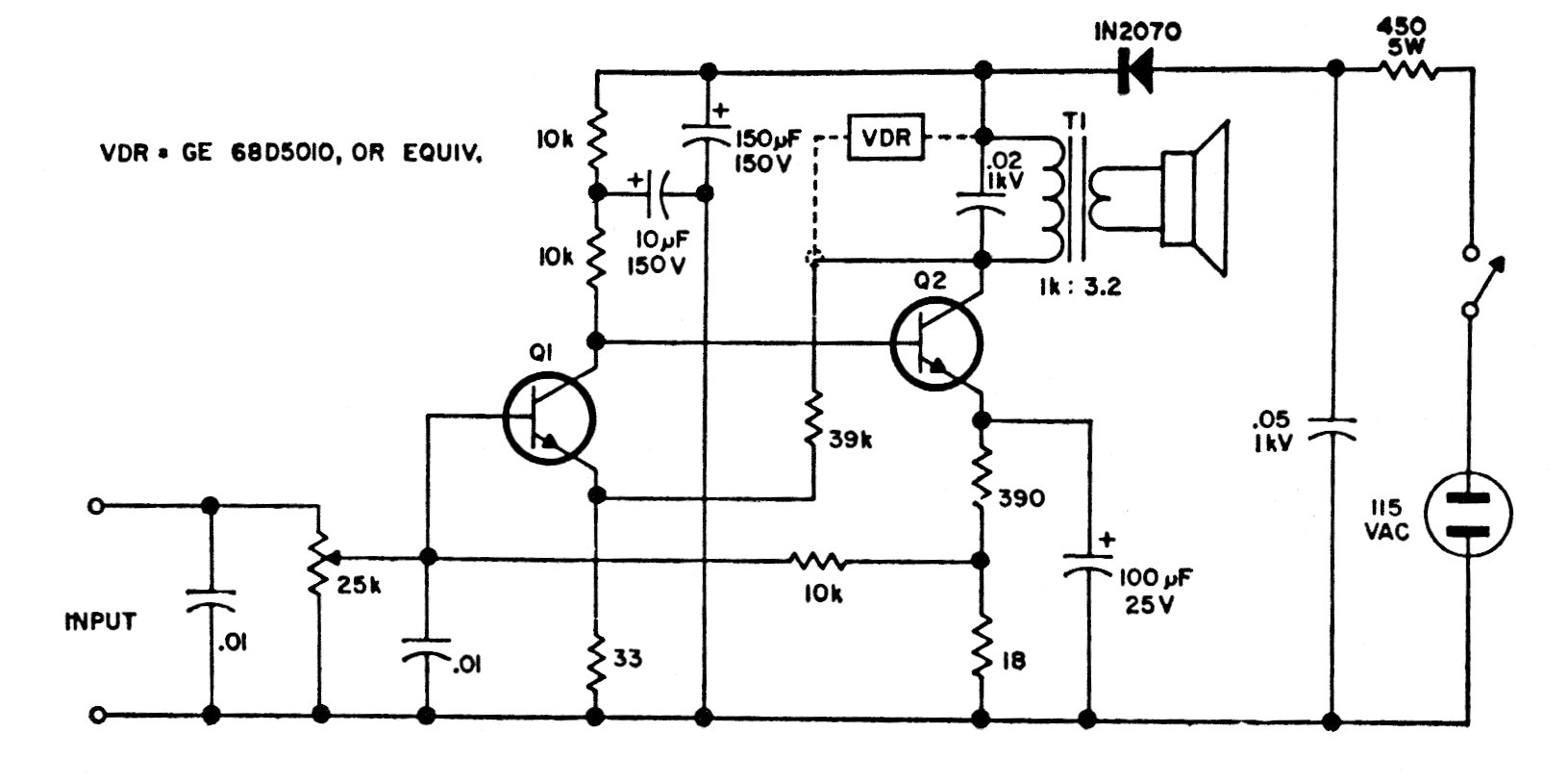

This amplifier is from Motorola documentation from the 70s. The circuit uses transistors from the time, which are not common today, such as the SE7005 or 2N3916 at the output.

| Clique na imagem para ampliar |
