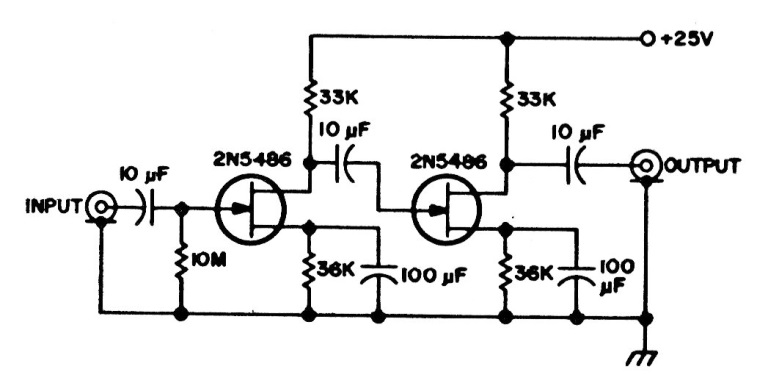

1 Hz to 50 kHz amplifier (CB20245E)

Details
Written by: Newton C. Braga



The FETs of this circuit can be the BF245. The circuit is from an old documentation and can be used in the amplification of infrasonic waves, of a sonic attack, for example.
