1 W Amplifier MFC8010 (CB20030E)

Details
Written by: Newton C. Braga

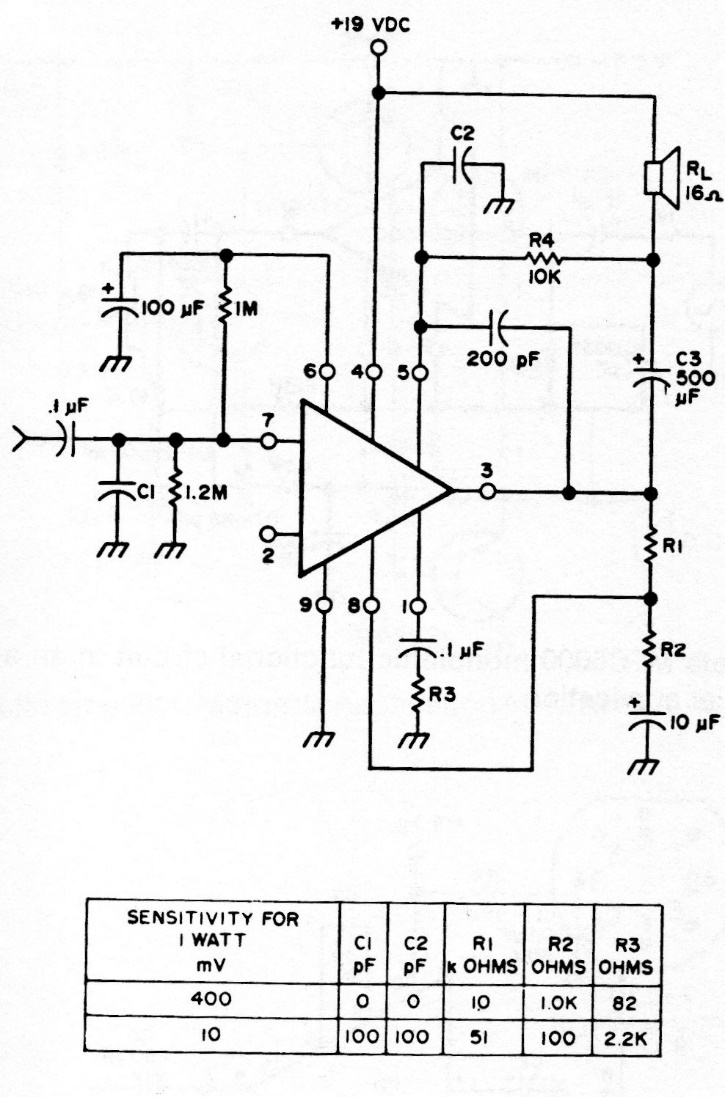

This amplifier uses an integrated circuit from the 70s, which is no longer common on the market. The circuit was used at the time as a sound output stage for televisions.




| Clique na imagem para ampliar |
