Winner indicator for slot car (CB20964E)

Details
Written by: Newton C. Braga

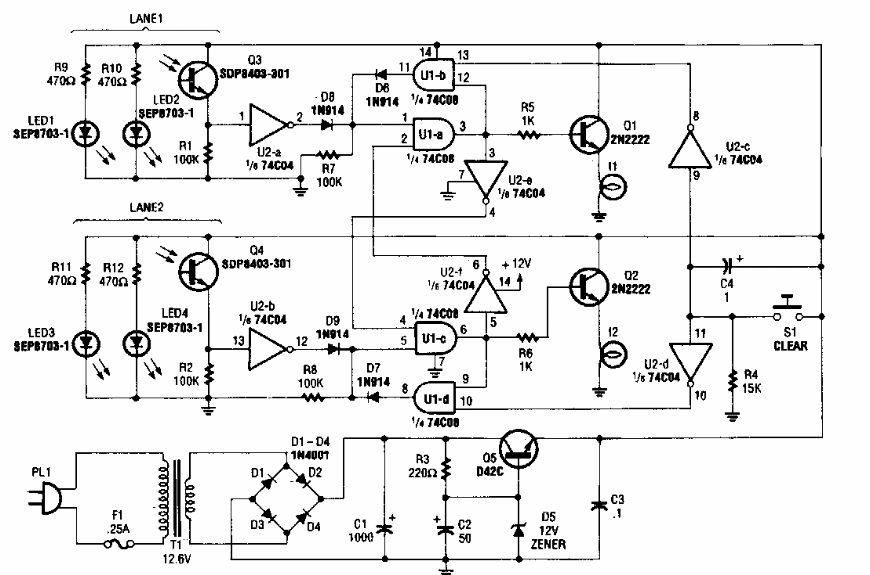

The purpose of this circuit is to indicate which of the two cars crosses the finish line first on a slot car lane. The circuit is from an 80's Popular Electronics.
