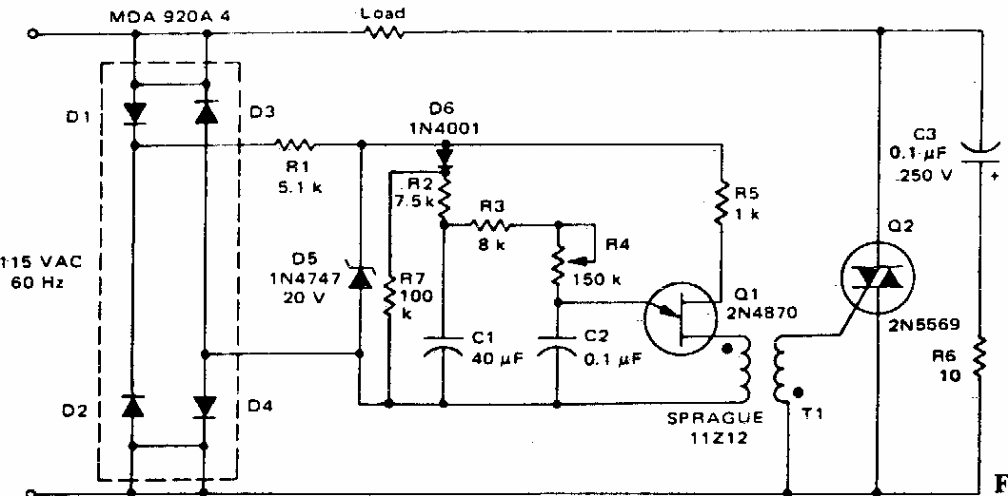

This circuit was obtained in documentation from the 1980s. The triac and the unijunction support modern equivalents. The trigger transformer is 1: 1 turn ratio.
| Clique na imagem para ampliar |
Soft start dimmer (CB20713E)
- Details
- Written by: Newton C. Braga
