Asymmetrical Astable (CB6463E)

Details
Written by: Newton C. Braga

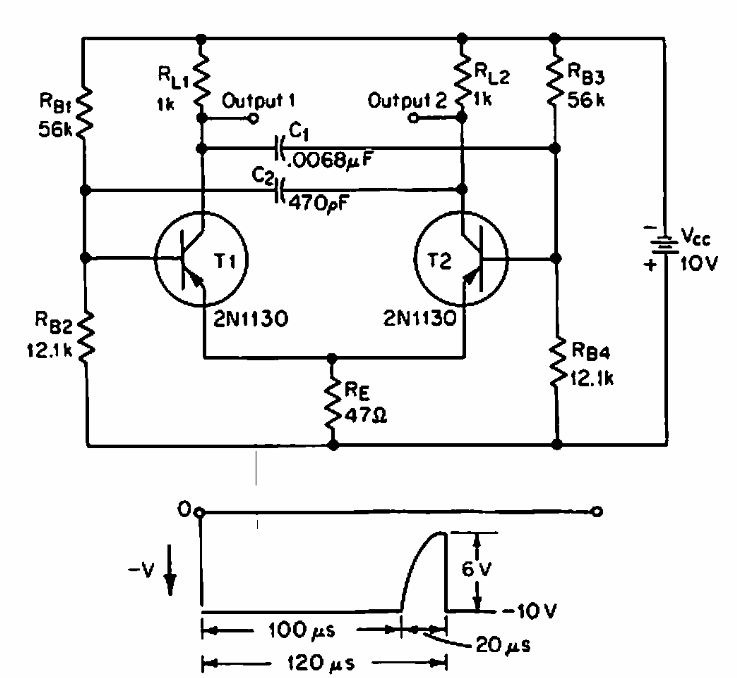

     This circuit is from a 1968 documentation. It generates a non-symmetrical signal with the waveform shown next to the diagram. Transistors are of the time, but modern equivalents can be used.




| Clique na imagem para ampliar |
