Model control speed (CB20791E)

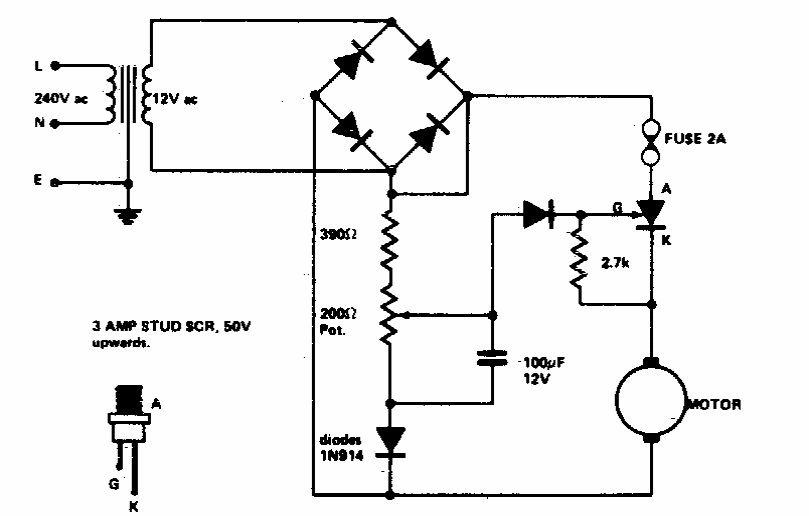

Found in old documentation, this circuit uses an SCR like the TIC106 that must be equipped with a heat sink. The motor can be up to 3A.

| Clique na imagem para ampliar |
