Two decades high frequency VCO (CB20830E)

Details: Written by: Newton C. Braga

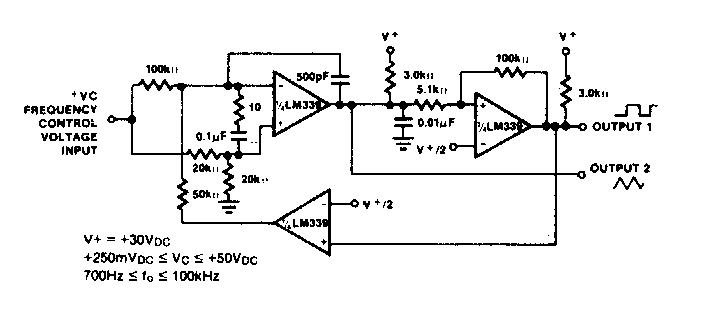

Using operational amplifiers of the time, we found this circuit in documentation from the 90s. The configuration can be adapted to use modern operational amplifiers.
