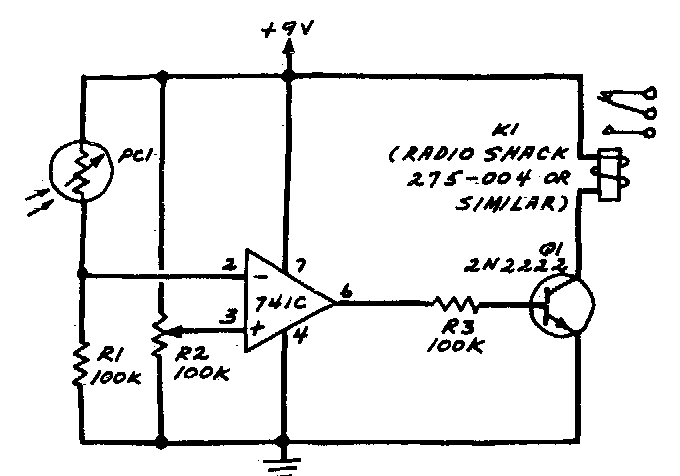

This conventional relay light detector circuit uses a 741 as a voltage comparator. The sensitivity adjustment is made in R1. The supply voltage depends on the relay used.
| Clique na imagem para ampliar |
Adjustable light detector (CB20693E)
