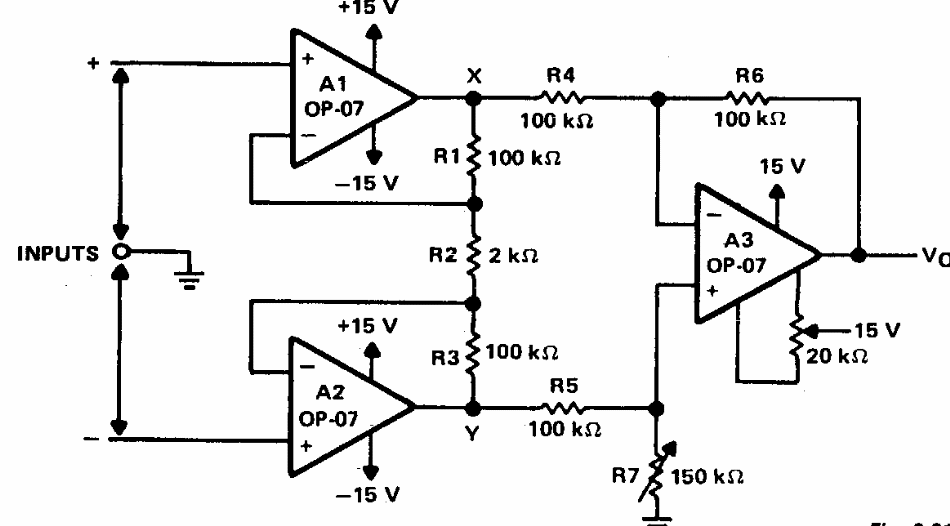

High impedance differential amplifier (CB20641E)

This circuit is from Texas Instruments documentation from the 1980s. The operatinal ones are from the era and the power supply must be symmetrical.

| Clique na imagem para ampliar |

Field Strength Meter (CB18302E)
This simple field strength meter was found in a 1967 documentation. The transistor is germanium, and the...
Light Controlled Oscillator (CB16728E)
This is yet another version of the light-controlled oscillator that can be found on this website. This...
Transformerless Sensitive Phase Detector (CB8496E)
Found in a 1969 documentation, this circuit for the 20 MHz band does not use a transformer. The circuit is...
