Optical trigger (CB20692E)

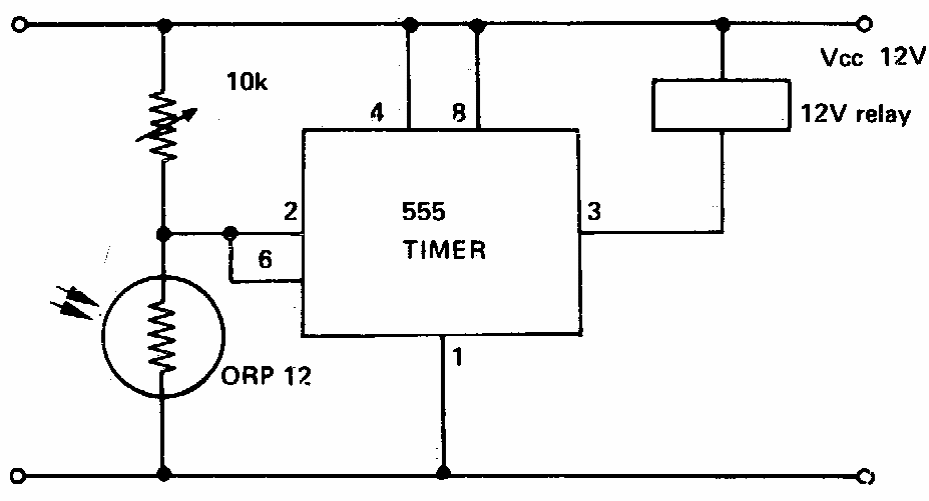

This Schmitt optical trigger with LDR was found in old documentation. The relay must be sensitive, or an additional step must be used to trigger it.

| Clique na imagem para ampliar |
