0 to 20 second timer (CB20370E)

Details
Written by: Newton C. Braga

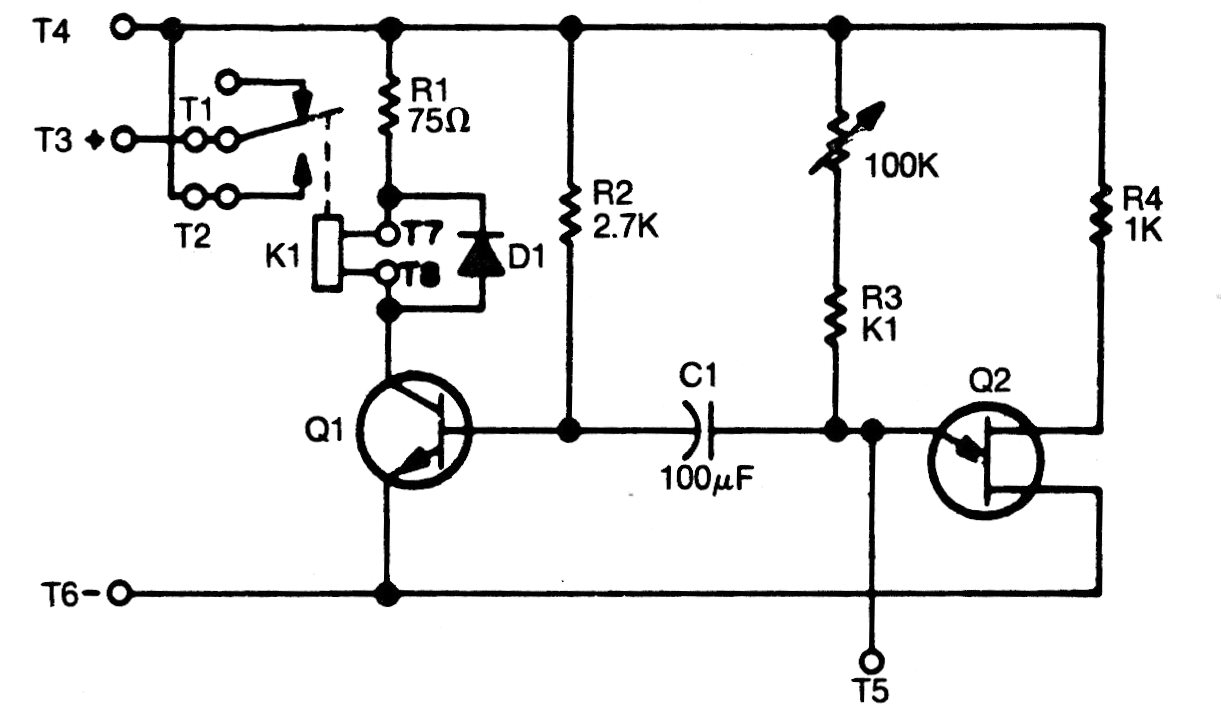

This simple timer with unijunction transistor was found in an old American technical documentation. We can use 2N2646 for the unijunction and BC548 for the transistor.




| Clique na imagem para ampliar |
