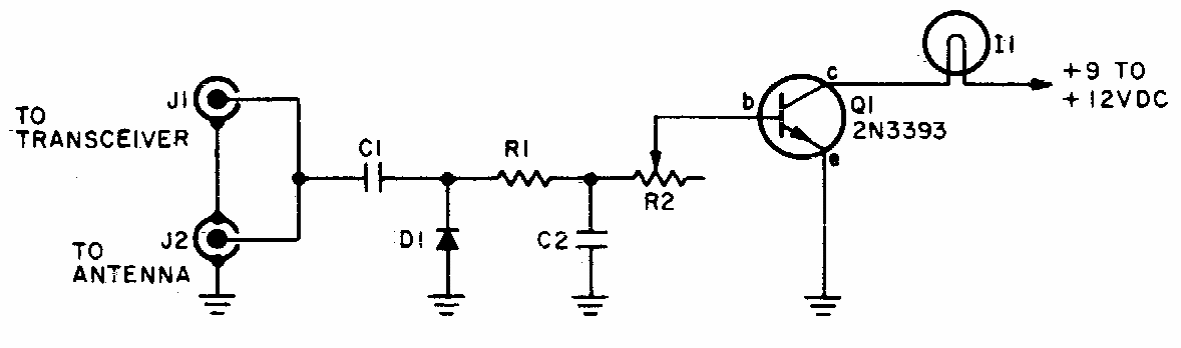

This simple circuit aims to visualize the modulation of a signal from a transceiver. Capacitor C1 is from 5 to 10 pF, the general-purpose diode. The resistors have values between 1 k and 10 k depending on the power of the transmitter.
