Unijunction timer with lock (CB20366

Details
Written by: Newton C. Braga

E)

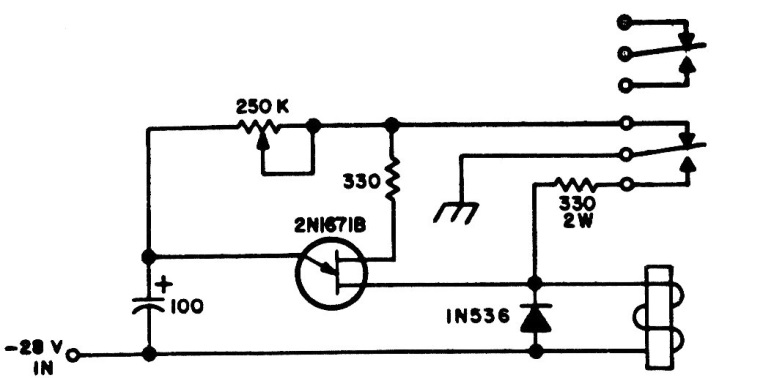

This circuit uses a reversible double contact relay to obtain the trigger lock with the unijunction pulse. The relay must be of the sensitive type with at least 150 ohms of coil.
