Simple function generator (CB20950E)

Details
Written by: Newton C. Braga



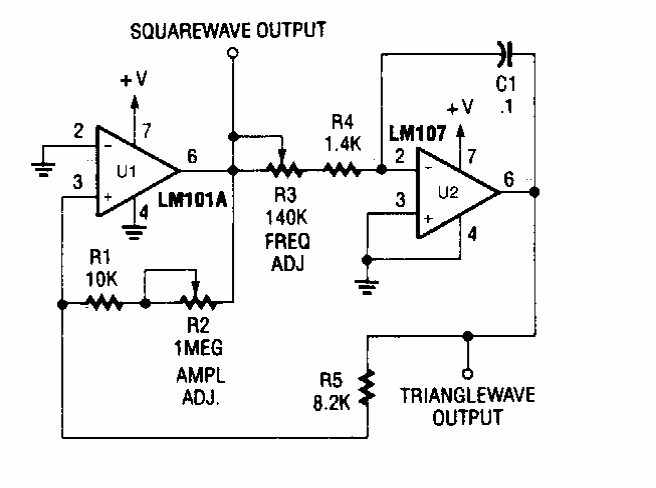

Found in Popular Electronics from the 1980s, this circuit uses two operational amplifiers from that time. The circuit has frequency and symmetry adjustment.




| Clique na imagem para ampliar |
