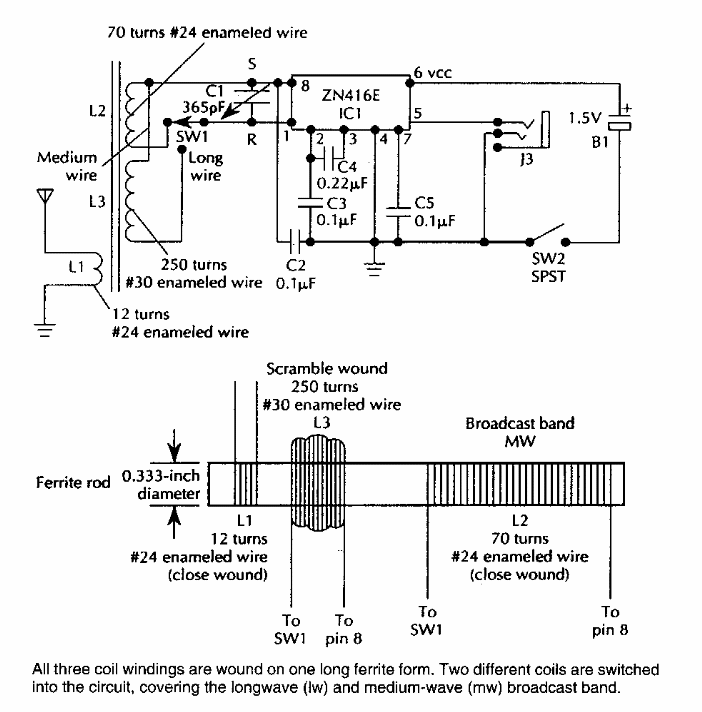

2 band receiver ZN416 (CB21206E)

Found in documentation from the 1990s, this circuit uses an integrated radio from the time and has high impedance earphone listening.

| Clique na imagem para ampliar |
