Power supply with solar panel (CB21022E)

Details
Written by: Newton C. Braga

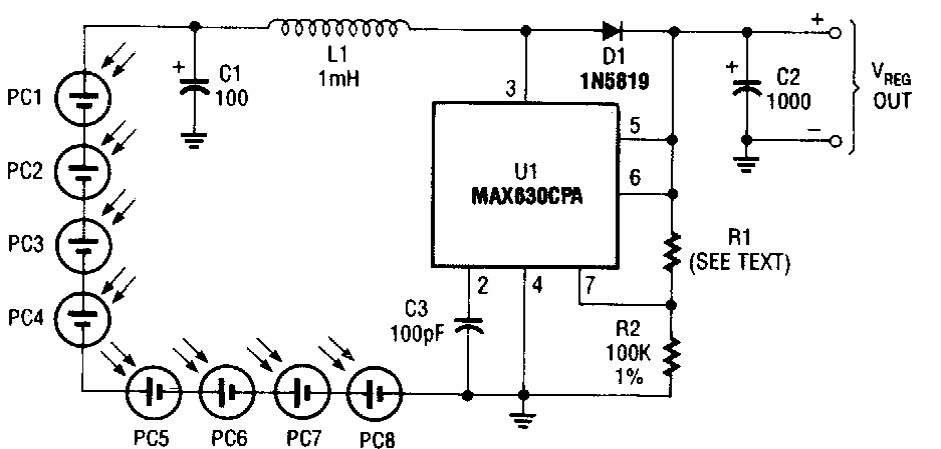

This circuit was found in a Maxim documentation from the 90s. It is valid for the lower income types of the time. The source provides 4.8 or 7.2V under 15 mA current with a 3V input. the efficiency of the regulator is 70%
