Triangular generator (CB21445E)

Details
Written by: Newton C. Braga

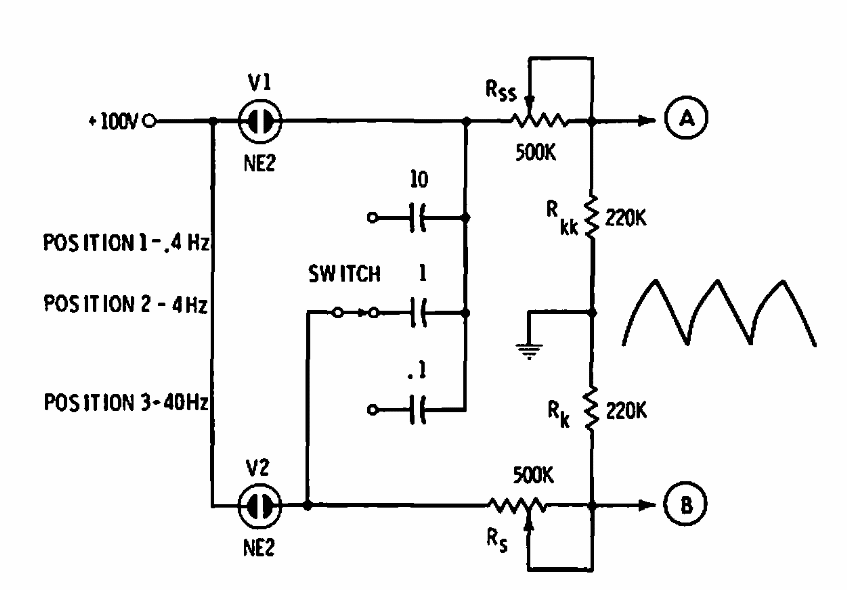

Found in old documentation about neon lamps, this circuit produces very low frequency signals that depend on the selected capacitor.
