Long times with DI3T1 (CB21422E)

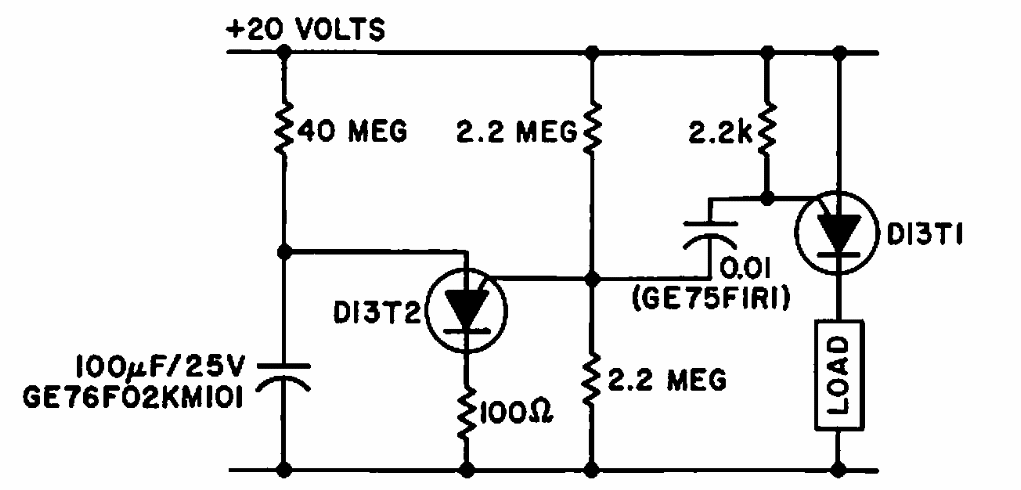

This PUT circuit was found in a 1967 General Electric SCR manual. The basic component is unusual, and the capacitor must be low-leakage.
