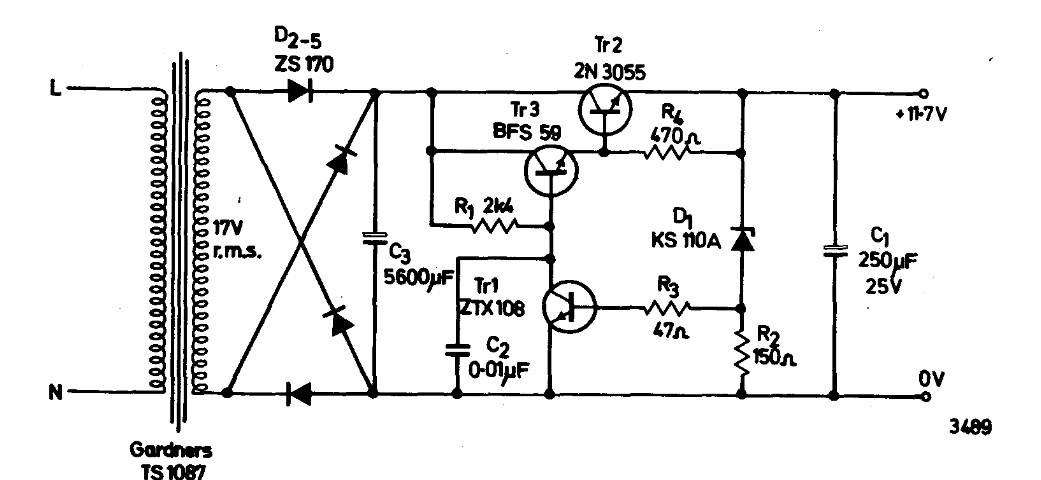

12V x 1A power supply (CB21851E)

This stabilized power supply was found in the 1974 Ferranti transistor manual. The power transistor must be mounted on a heatsink.

| Clique na imagem para ampliar |
