10 Second Timer (CB21421E)

Details
Written by: Newton C. Braga

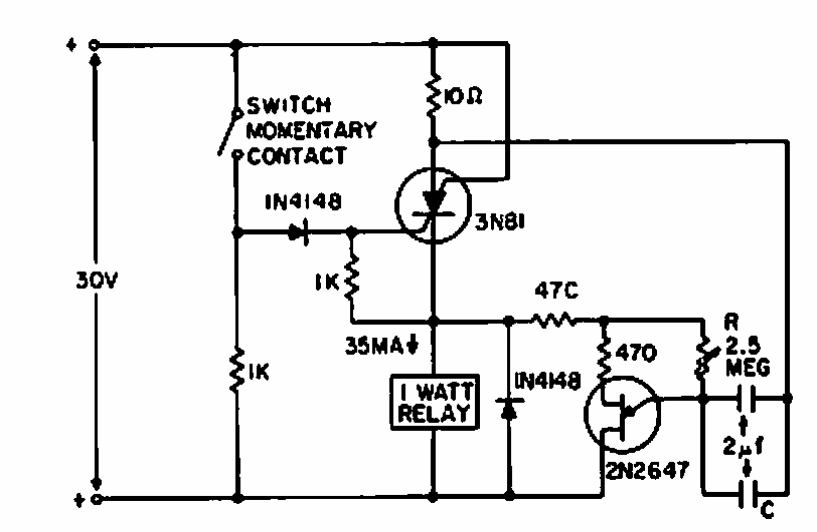

This circuit from a 1966 General Electric manual makes use of an SCS. The time is given by the emitter capacitors of the unijunction transistor.




| Clique na imagem para ampliar |
