Modulator for rectangular signals (CB21630E)

Details
Written by: Newton C. Braga

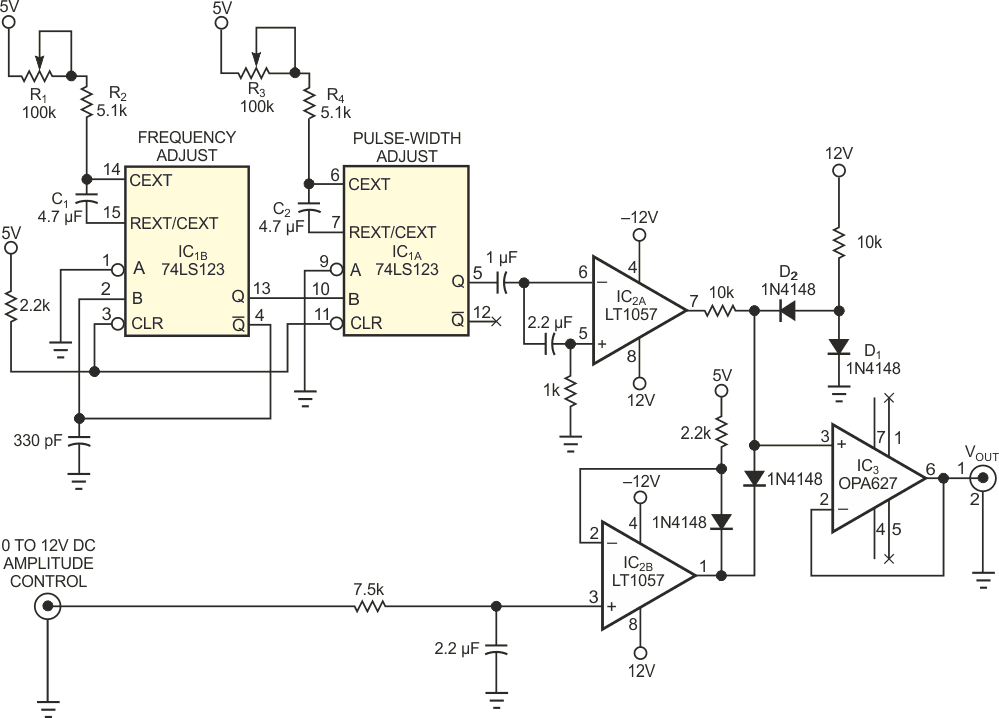

Based on TTL logic this circuit can vary both the frequency and the pulse width of a rectangular signal. Equivalent components can be tested.
