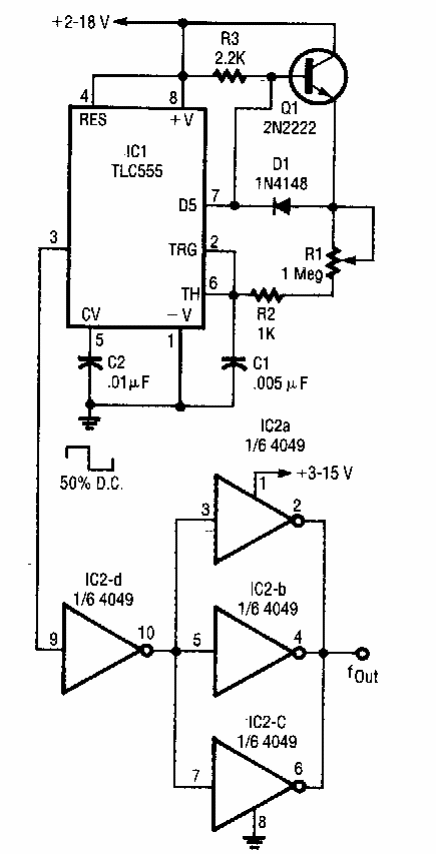

Found in an Electronics Now from the 90s, this circuit with the 555 generates a signal with 50% duty cycle. Frequency is set in R1.
555 with active cycle (CB21130E)
- Details
- Written by: Newton C. Braga
Found in an Electronics Now from the 90s, this circuit with the 555 generates a signal with 50% duty cycle. Frequency is set in R1.
