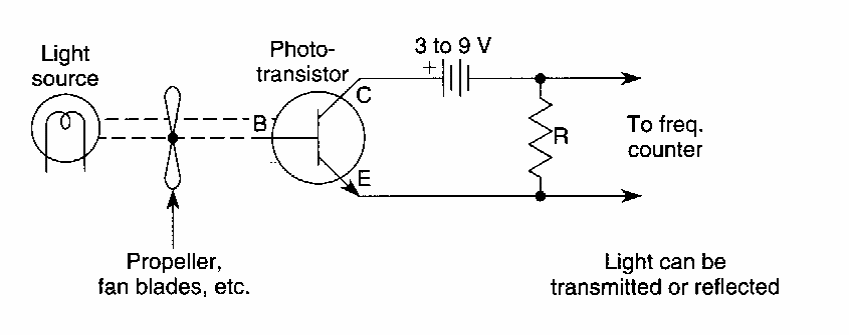

With this circuit it is possible to use a frequency meter as a tachometer. The circuit was found in American documentation from the 90s. The phototransistor can be of any type.
| Clique na imagem para ampliar |
Tachometer Adapter (CB21012E)
- Details
- Written by: Newton C. Braga
