Jacob's Ladder (CB21079E)

Details
Written by: Newton C. Braga

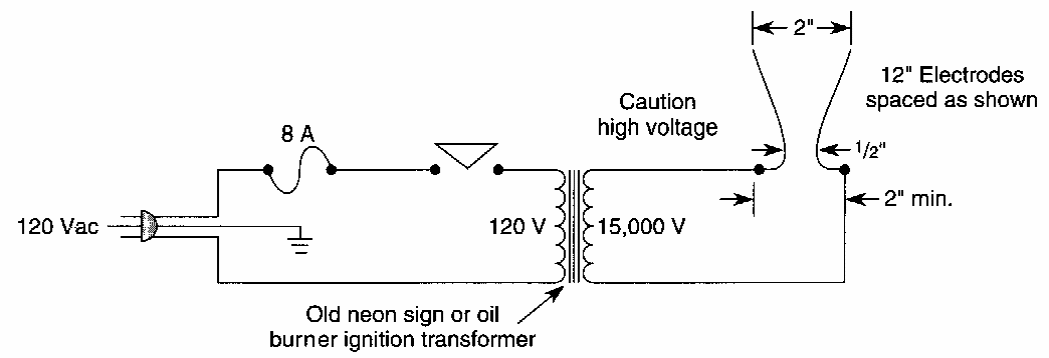

This circuit was found in American documentation from the 90's. The transformer is of the high voltage type for old light advertisements.




| Clique na imagem para ampliar |
