Active bass and treble control (CB21296E)

Details
Written by: Newton C. Braga

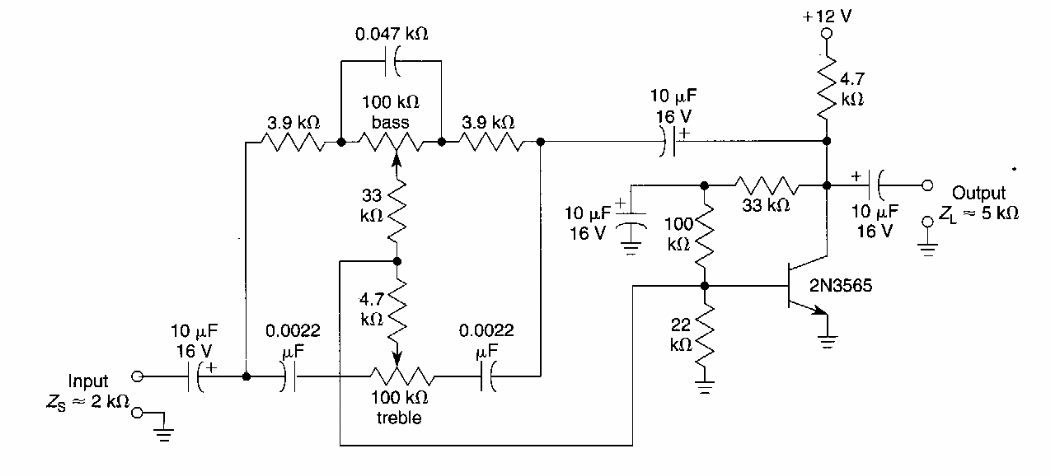

This active tone control circuit was found in American documentation from the 90's. The transistor can be general purpose or low noise with high gain.
