Water sensor transmitter (CB21879E)

Details
Written by: Newton C. Braga

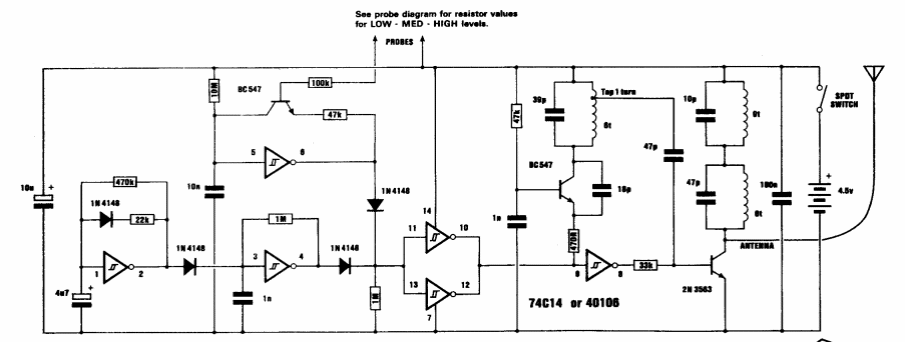

This circuit was found in an Australian publication from 1991. It is a transmitter that transmits a signal when it detects moisture. The range is on the order of a few tens of meters.




| Clique na imagem para ampliar |
