Shunt regulator (CB21217E)

Details
Written by: Newton C. Braga

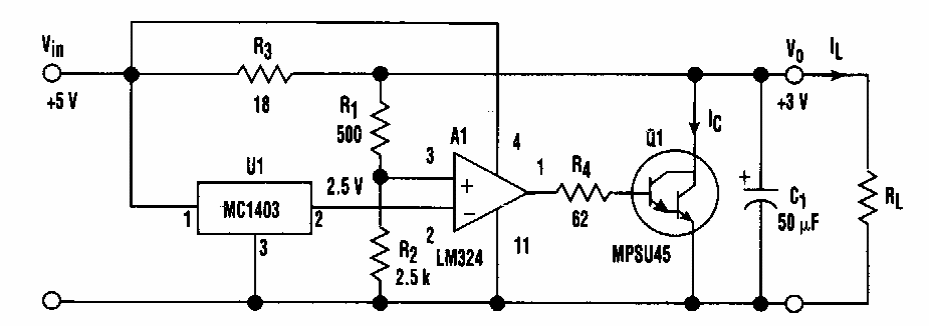

This shunt voltage regulator was found in an Electronic Design from the 90's. The power transistor must be in accordance with the load current and must be equipped with a heat sink.




| Clique na imagem para ampliar |
