Stair generator up and down (CB21246E)

Details
Written by: Newton C. Braga

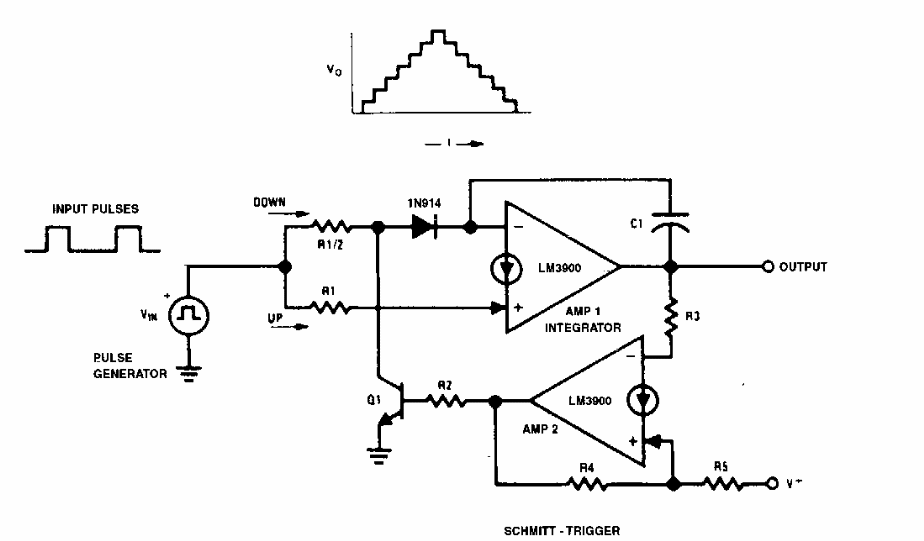

Found in National Semiconductor documentation this circuit converts a rectangular signal into an up-down ladder. The power supply must be symmetrical.




| Clique na imagem para ampliar |
