This circuit was obtained from a General Electric documentation from 1967. The time is given by the RC network at the PUT trigger.
| Clique na imagem para ampliar |

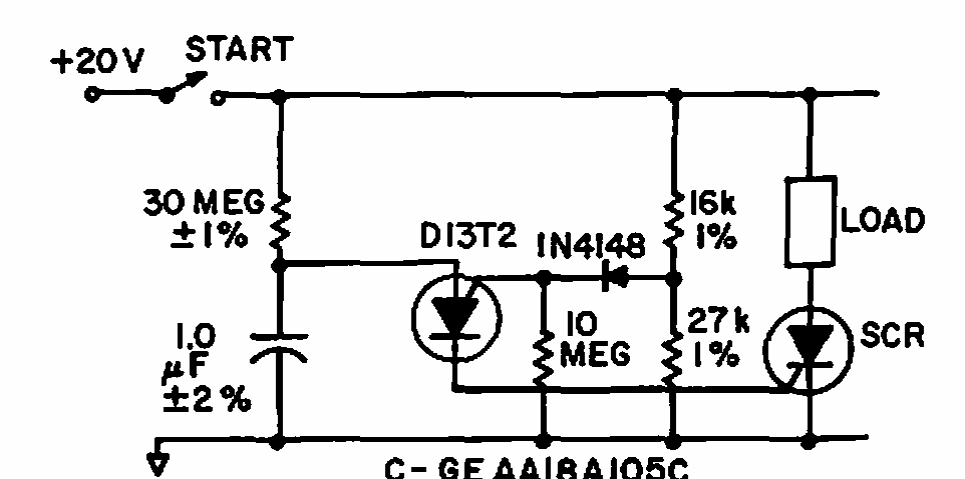

30 s delay with PUT (CB21417E)
- Details
- Written by: Newton C. Braga
This circuit was obtained from a General Electric documentation from 1967. The time is given by the RC network at the PUT trigger.
