Bass and Treble Control (CB21295E)

Details
Written by: Newton C. Braga

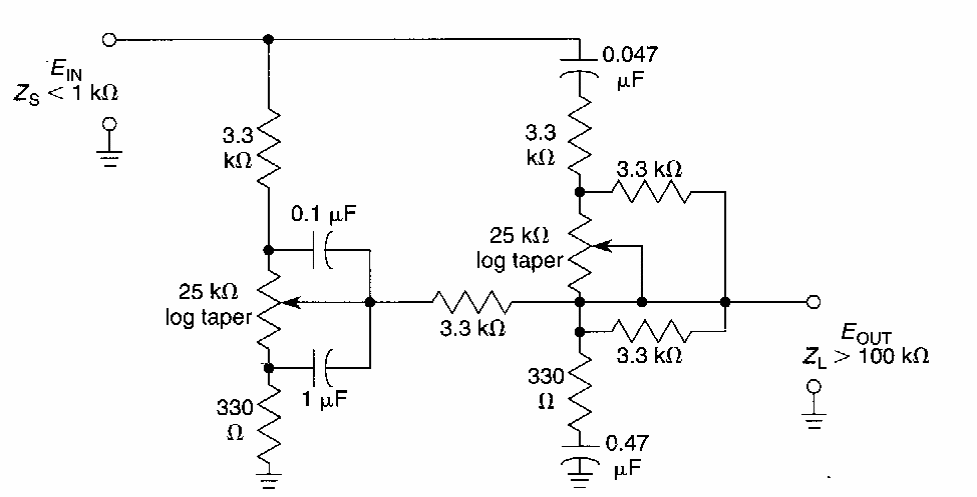

This passive circuit can be used in input steps of amplifiers and other audio equipment. The circuit is passive introducing losses that must be compensated.




| Clique na imagem para ampliar |
