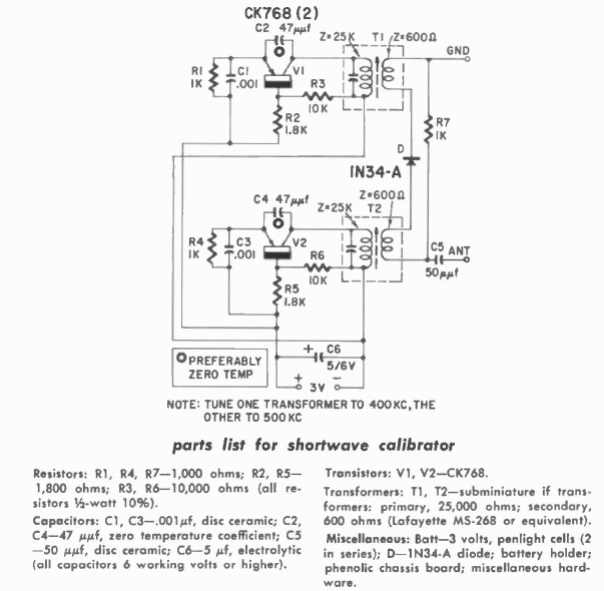

This circuit was found in a 1960s book of projects by Gernsbak. The circuit uses germanium transistors generating spaced 100 kHz signals spaced for receiver calibration.
Short Wave Calibrator (CB21667E)
- Details
- Written by: Newton C. Braga
This circuit was found in a 1960s book of projects by Gernsbak. The circuit uses germanium transistors generating spaced 100 kHz signals spaced for receiver calibration.
