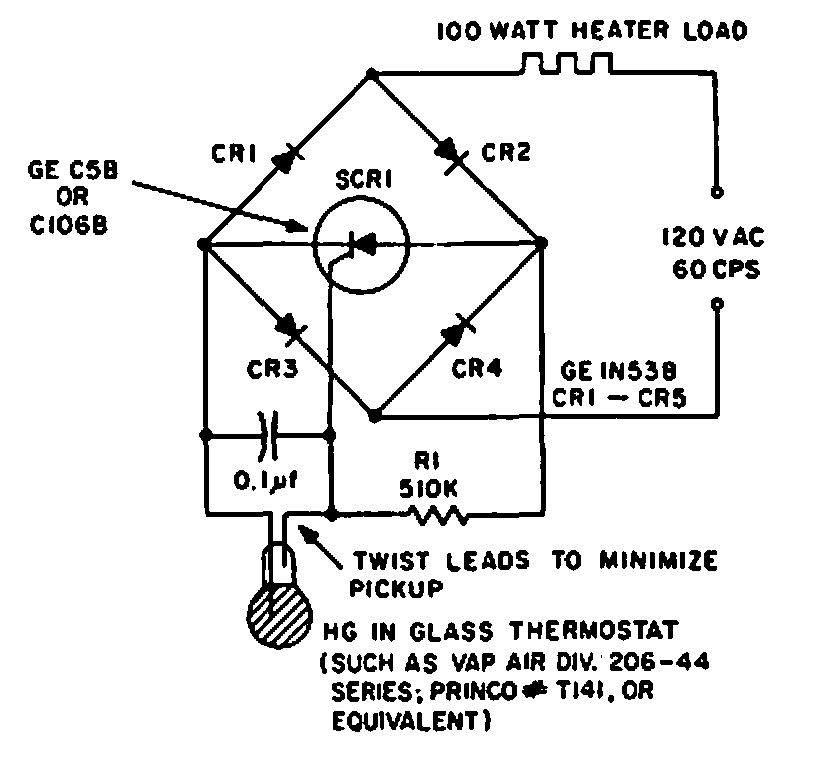

Thermostatic control with mercury sensor (CB21388E)

This former temperature sensor with a mercury sensor was found in a General Electric documentation from 1967. The SCR must match the load.

| Clique na imagem para ampliar |

Single-phase power supply with diode bridge (CB24571E)
This non-regulated power supply uses a single secondary winding transformer. The secondary voltage...
LM4862 Sine Wave Oscillator (CB26114E)
Using a small incandescent bulb as a regulator, this Wien bridge oscillator produces a sinusoidal...
Audio inverter (CB12778E)
The figure presents a configuration that can be very useful for audio equipment designers. What...
